ASTM SGCC Flat GI Hot Dip Galvanized Steel Sheet

Product Categories
Shanghai Moopec Ltd
Contact Now

ASTM SGCC Flat GI Hot Dip Galvanized Steel Sheet

Brand Name : Baosteel

Model Number : SGCC

Place of Origin : China

MOQ : 500kg

Price : $0.95/kg ; $880/Ton

Payment Terms : L/C, T/T

Delivery Time : 3-7work days

Packaging Details : Fine packing with oiled paper

Standard : AISI, ASTM, GB, JIS, DIN

Application : Mold Test / Manufacture / Building

Type : Coil/sheet/plate

Surface Treatment : Galvanized

Width/Length : As Customer's Request

Tolerance : Min width tolerance ±0.05

Payment : L/C;T/T

Processing : Decoiling, cutting

Packing : Fine packaging with oiled paper

Delivery terms : FOB/CFR/CIF/DDA

Contact Now

Galvanized coils, the sheet steel is immersed in a molten zinc bath to make a sheet of zinc coated on its surface. It is mainly produced by continuous galvanizing process, that is, the rolled steel plate is continuously immersed in a plating tank with molten zinc to make galvanized steel plate; alloyed galvanized steel plate.

This kind of steel plate is also produced by hot dip method, but immediately after it is out of the tank, it is heated to about 500 ℃ to form an alloy film of zinc and iron. This galvanized coil has good paint adhesion and weldability

Yield strength(Mpa) 140~300
Tensile strength(Mpa) 270~500
Elongation(%) ≥22

Component(Wt%) C Si Mn P S Ti
≤0.12 ≤0.5 ≤0.6 ≤0.1 ≤0.045 ≤0.3

Average weight of upper Surface coating (g/㎡) Average weight of lower Surface coating (g/㎡) coating form
30~225 30~225 Equal thickness
Average weight of upper Surface coating (g/㎡) Average weight of lower Surface coating (g/㎡) coating form
30~150 30~150 Poor thickness
The maximum difference thickness ratio is: 1:3 ---

Product Name Zinc Coated Hot Dipped Galvanized Steel Strip / Coil / GI coil
Technical Standard EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653
Steel Grade DX51D, DX52D, Dx53D, DX54D, SGCC, SGHC, SGCH
Type Coil/Sheet/Plate/Strip
Thickness As customer's requirement
Width 50mm-1500mm, according to customer's requirement
Type of Coating Hot Dipped Galvanized Steel(HDGI)
Zinc Coating 30-275g/m2
Surface Treatment Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U)
Surface Structure Normal spangle coating(NS), minimized spangle coating(MS), spangle-free(FS)
Quality Approved by SGS,ISO
Coil Weight 1-20 metric ton per coil
Package Water proof paper is inner packing,galvanized steel or coated steel sheet is outer packing , side guard plate,then wrapped by several steel belt. Or according to customer's requirement
Export market Europe, Southeast Asia, Middle East, South America, North America, etc

ASTM SGCC Flat GI Hot Dip Galvanized Steel Sheet


Product Tags:

flat Hot Dip Galvanized Steel



gi Hot Dip Galvanized Steel



SGCC flat gi sheet


Wholesale ASTM SGCC Flat GI Hot Dip Galvanized Steel Sheet from china suppliers

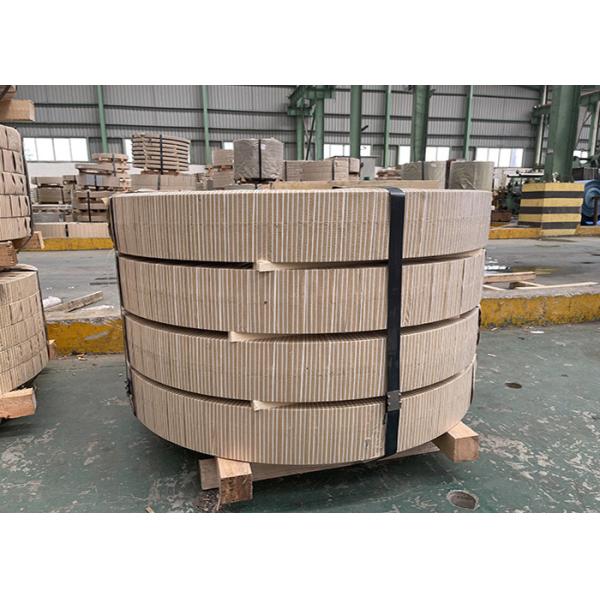

ASTM SGCC Flat GI Hot Dip Galvanized Steel Sheet Images
